REvive MPPT Boost

REvive MPPT Boost chargers enable charging batteries from Solar Panels having Voltage LESSER than the battery Voltage !

REvive MPPT Boost is a solar charger designed for charging batteries from Solar panels having Voltage less than the Battery Voltage. Example application is in E-Rickshaws. By keeping the batteries charged and delivering power through the day, Solar addition in E-Rickshaws has the potential to increase the income from E-Rickshaws. The E-Rickshaw’s productive hours, the useful run time of the Rickshaw increases with utilization of Solar Power.

High efficiency MPPT Boost charger built for E-Rickshaw applications: Decreases Solar Investment and Increases Income

E-rickshaws come with constraints on the space available to mount Solar panels. In the limited space available on the roof, it is possible to fit one 72 Cell panel (size 1M x 1.9M). Commonly available 72 cell panels come with an Open Circuit Voltage of ~44 to 46V. This Voltage is lesser than the Battery system Voltage of 48V DC. With REvive MPPT Boost, it is now possible to connect a single standard 72cell panel (24V panel in market parlance) to charge the 48V battery system instead of using ‘Cut’ cell panels that have higher input Voltage compared to the battery Voltage. Standard panels cost less per Wp compared to Cut cell PV panels which results in lower initial investment using REvive MPPT Boost.

Advanced MPPT algorithm and high efficiency power conversion ensure that the Batteries (and the Motor) are continuously delivered power

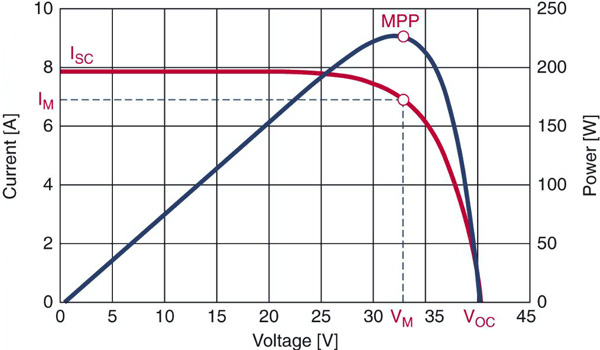

REvive MPPT Boost uses advanced Maximum Power Point tracking to deliver maximum possible power from the panels under exacting and continuously varying conditions. The high efficiency converter converts the input Voltage at Maximum Power Point to output Battery Voltage. The charger enhances the availability of usable energy for the E-Rickshaw by continuously delivering power to the batteries and the motor when Solar energy is available. Periodic full scan of the IV curve by the charger makes sure the output is extracted at the global MPP point – even under partial shadow conditions.

Power Electronics for a Greener Future
Multi-stage battery charging for safe charging of batteries

REvive MPPT Boost uses three stage battery charging: Bulk, Absorb and Float. When loads are running, the charger will deliver the power from Solar PV that is available after servicing the loads to the batteries based on the stage of Battery charging.

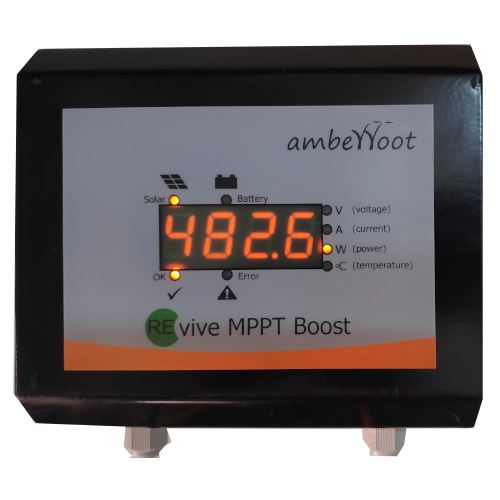

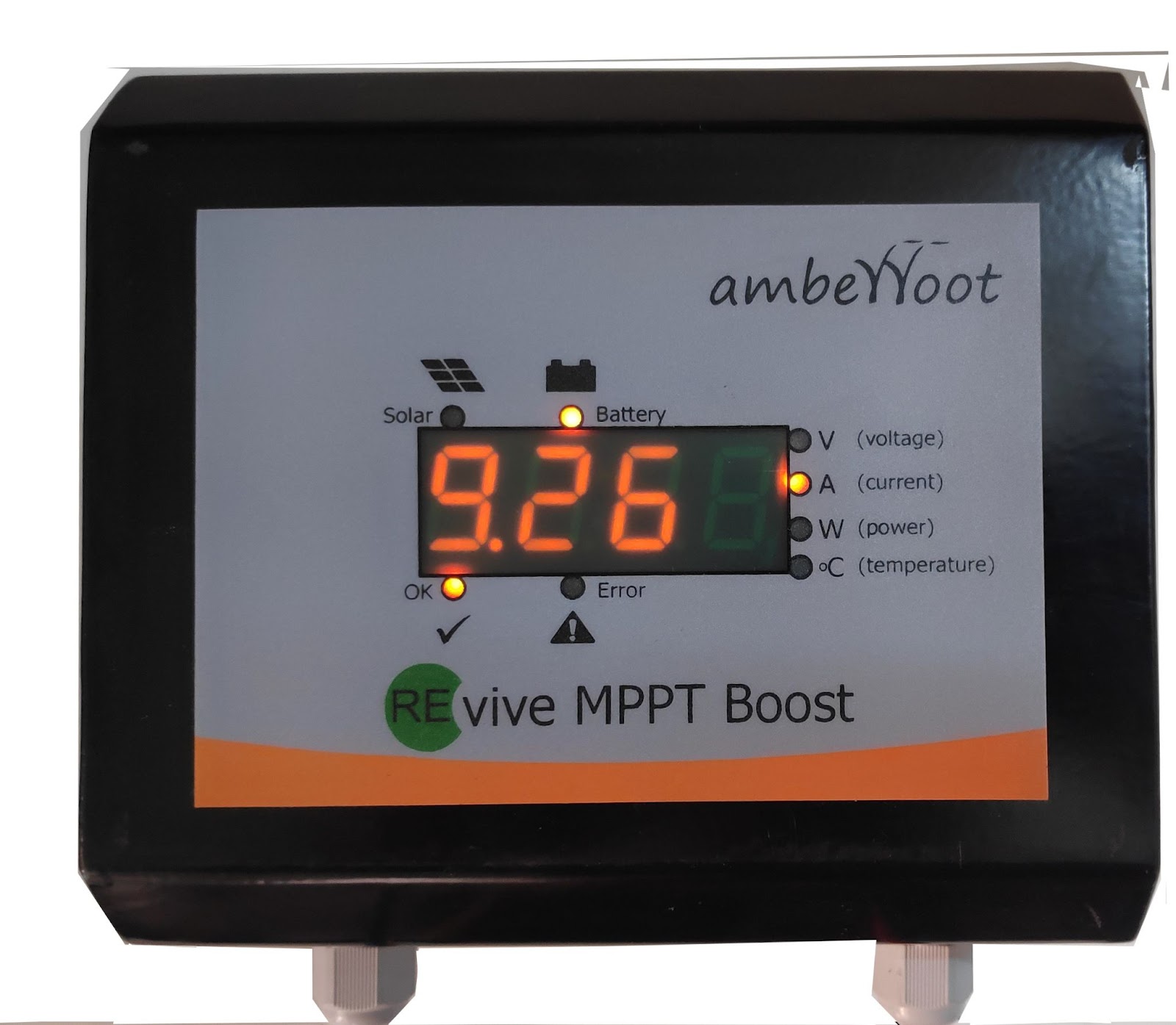

Four-digit, 7 Segment LED display

A simple display to show the instantaneous Solar and Battery parameters Viz. Solar Output Current, Solar Output Power, Battery Voltage and Internal Heat sink temperature.

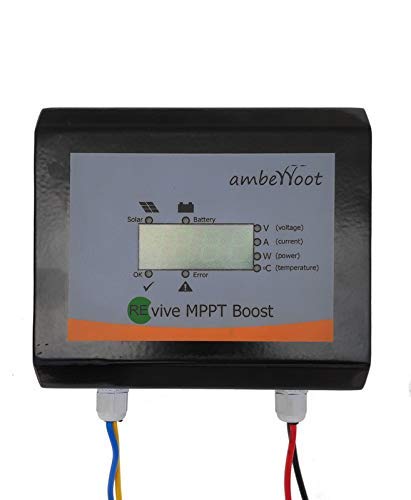

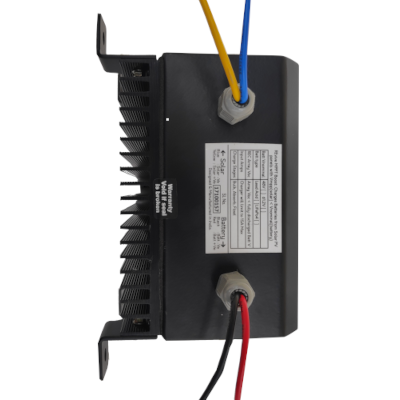

IP43 equivalent enclosure with multiple mounting options

The enclosure is protected against accidental splashing of water and is meant to be used in E-Rickshaws mounted under roof the Rickshaw.

Amberroot Systems designs and manufactures pioneering Solar products for the Indian market. REvive MPPT Boost is a solar charger designed for charging batteries from Solar panels having Voltage less than the Battery Voltage. Example application is in E-Rickshaws. By keeping the batteries charged and delivering power through the day, Solar addition in E-Rickshaws has the potential to increase the income from E-Rickshaws. The E-Rickshaw’s productive hours, the time the Rickshaw can be on the road, increases with efficient utilization of Solar Power.

High efficiency MPPT Boost charger built for E-Rickshaw applications: Decreases Solar Investment and Increases Income

E-rickshaws come with constraints on the space available to mount Solar panels. In the limited space available on the roof, it is possible to fit one 72 Cell panel (size 1M x 1.9M). Commonly available 72 cell panels come with an Open Circuit Voltage of ~44 to 46V. This Voltage is lesser than the Battery system Voltage of 48V DC. With REvive MPPT Boost, it is now possible to connect a single standard 72cell panel (24V panel in market parlance) to charge the 48V battery system instead of using ‘Cut’ cell panels that have higher input Voltage compared to the battery Voltage. Standard panels cost less per Wp compared to Cut cell PV panels which results in lower initial investment using REvive MPPT Boost.

Advanced MPPT algorithm and high efficiency power conversion ensure that the Batteries (and the Motor) are continuously delivered power
REvive MPPT Boost uses advanced Maximum Power Point tracking to deliver maximum possible power from the panels under exacting and continuously varying conditions. The high efficiency converter converts the input Voltage at Maximum Power Point to output Battery Voltage. The charger enhances the availability of usable energy for the E-Rickshaw by continuously delivering power to the batteries and the motor when Solar energy is available. Periodic full scan of the IV curve by the charger makes sure the output is extracted at the global MPP point – even under partial shadow conditions.

Multi-stage battery charging for safe charging of batteries

REvive MPPT Boost uses three stage battery charging: Bulk, Absorb and Float. When loads are running, the charger will deliver the power from Solar PV that is available after servicing the loads to the batteries based on the stage of Battery charging.

Four-digit, 7 Segment LED display

A simple display to show the instantaneous Solar and Battery parameters Viz. Solar Output Current, Solar Output Power, Battery Voltage and Internal Heat sink temperature.

IP43 equivalent enclosure with multiple mounting options

The enclosure is protected against accidental splashing of water and is meant to be used in E-Rickshaws mounted under roof the Rickshaw.

SPECIFICATIONS

REvive MPPT (Boost)
Description
Operating principle
High efficiency MPPT charger capable of charging 48V battery system from PV Panel Voltage lower than the output battery Voltage1
Array arrangement
Meant for Single 72 Cell Solar Panel or 36 Cell panels connected in Series- Parallel such that the Vmpp of the array does not exceed 48V Battery Voltage range1
Number of Maximum Power Point tracker inputs
Single MPPT
Battery System Voltage
48V output1
Highest system voltage
60V1
Maximum output current
12A
Maximum current at the input (from Solar module/ array)
15A
PV Open Circuit Voltage (VOC)
50V max
Recommended Nominal panel voltage
15V to 50V1
MPPT voltage range
12V to less than Battery Voltage
Recommended Solar module STC Wp
Recommended upto 600Wp PV panel to get peak output based on Maximum input current of 15A. Adding excess panels will result in Input being restricted to 15A
Temperature derating
Input maximum current is derated beyond heat sink temperature of 55°C
Power Conversion Efficiency (typical)
>93%
Charging states
Multistage - Bulk, Absorption, Float Charge. Factory configurable Voltage set points
Bulk Voltage set point
57V (Factory configurable) 1
Float Voltage set point
54.4V (Factory configurable) 1
Operating Temperature Range
0°C to 70°C. Input current is derated when Heat sink temperature is > 55°C
Protections
PV reverse polarity, Battery reverse polarity, Over Temperature, Over current
Ports

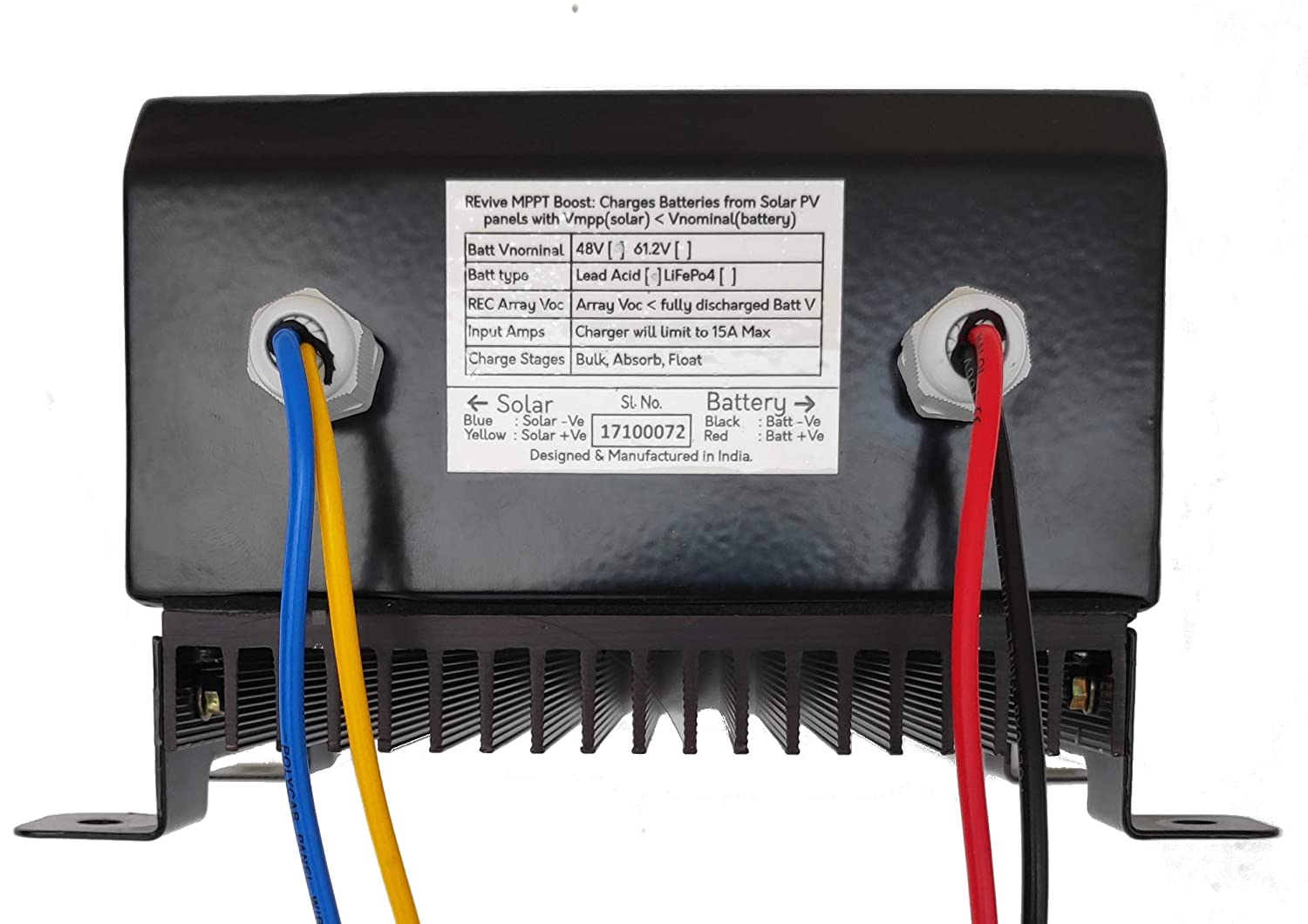

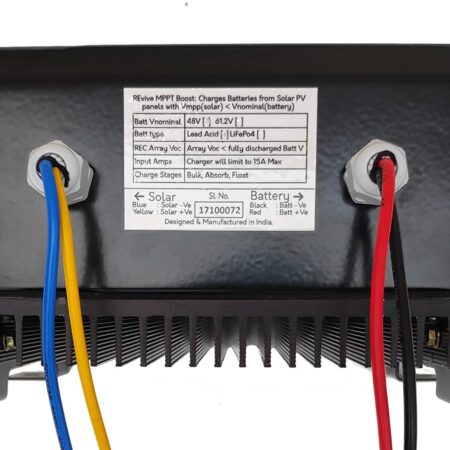

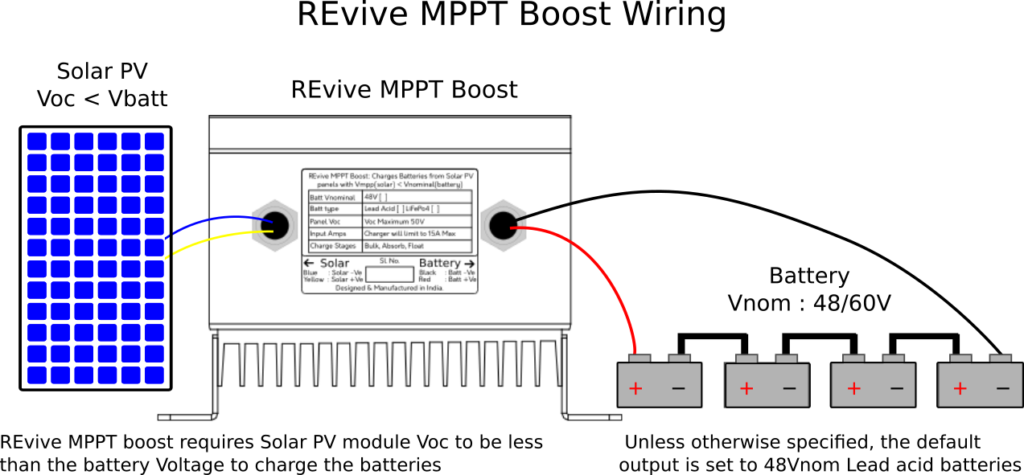

1 pair (+Ve + -Ve) of 2.5 Sqmm cable for connecting to Solar modules and one Pair Output 2.5 Sqmm cable (+Ve and -Ve) to connect to batteries
Display
LED seven segment display with scrolling parameters to show Solar Voltage, Battery Voltage, Input Current, Output Current and Output Power, Internal temperature
Package
Fully enclosed IP43 equivalent protection, 186mm X 128mm X 108mm
Note 1: The Voltage values have been mentioned for the default of 48Vnom, Lead acid batteries. It is possible to factory configure the output to LiFePo4 or Li-Ion batteries or alternate battery output Voltages
